Day 24 Task: Complete Jenkins CI/CD Project

Let's create end to end CICD for project Node JS application.

Task-01

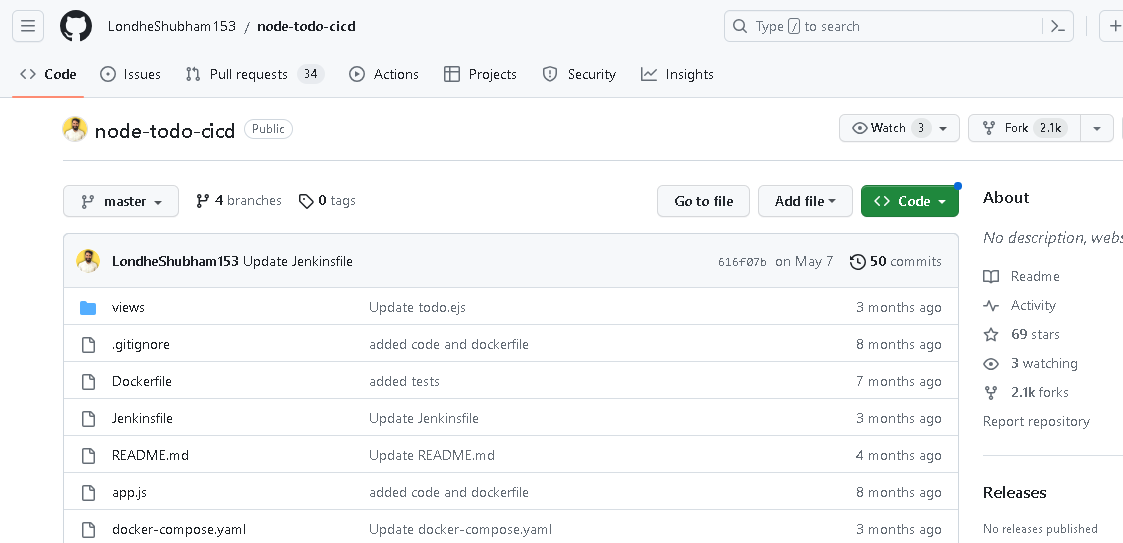

Fork this repository:

Create a connection to your Jenkins job and your GitHub Repository via GitHub Integration.

Steps:

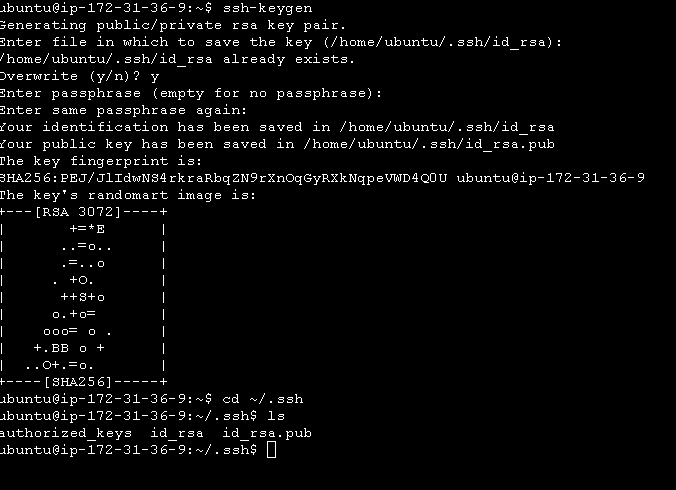

Generate the SSH keys for integrating your Jenkins project with your git repository. Use ssh-keygen command to create public and private key.

Configuring GitHub

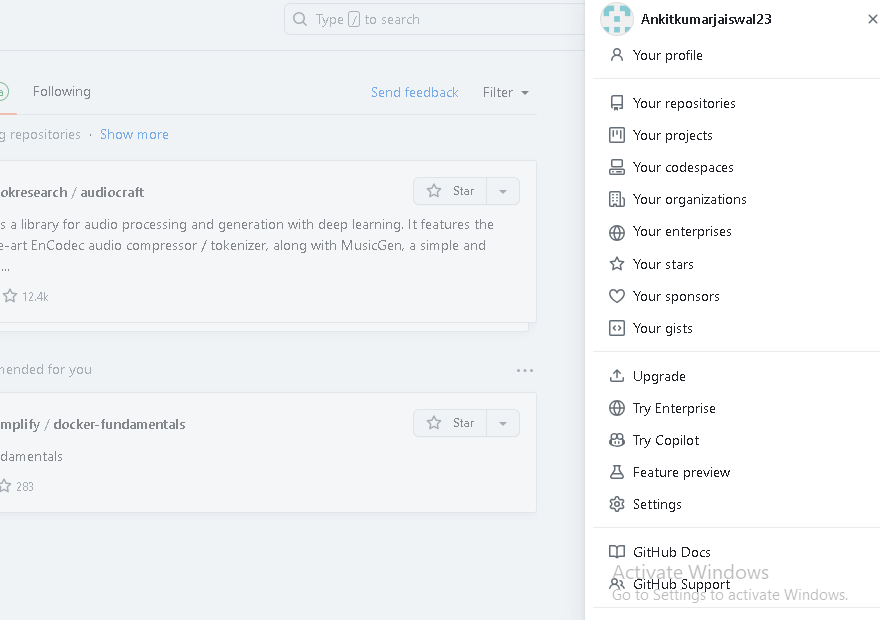

1.Go to your GitHub account settings.

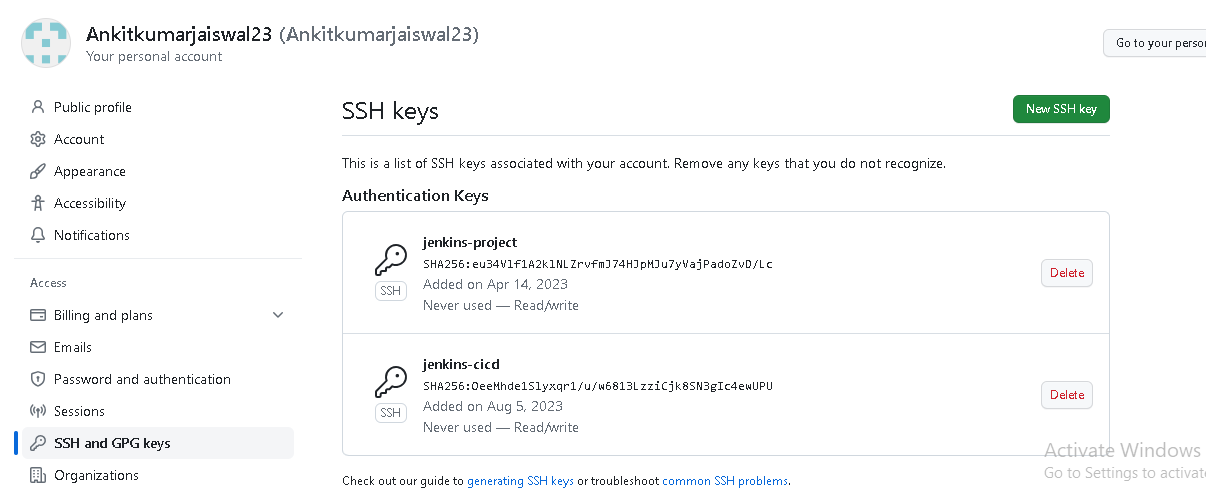

2.Go to SSH and GPG keys, Add public key that we created using ssh-keygen and select key-type Authentication key.

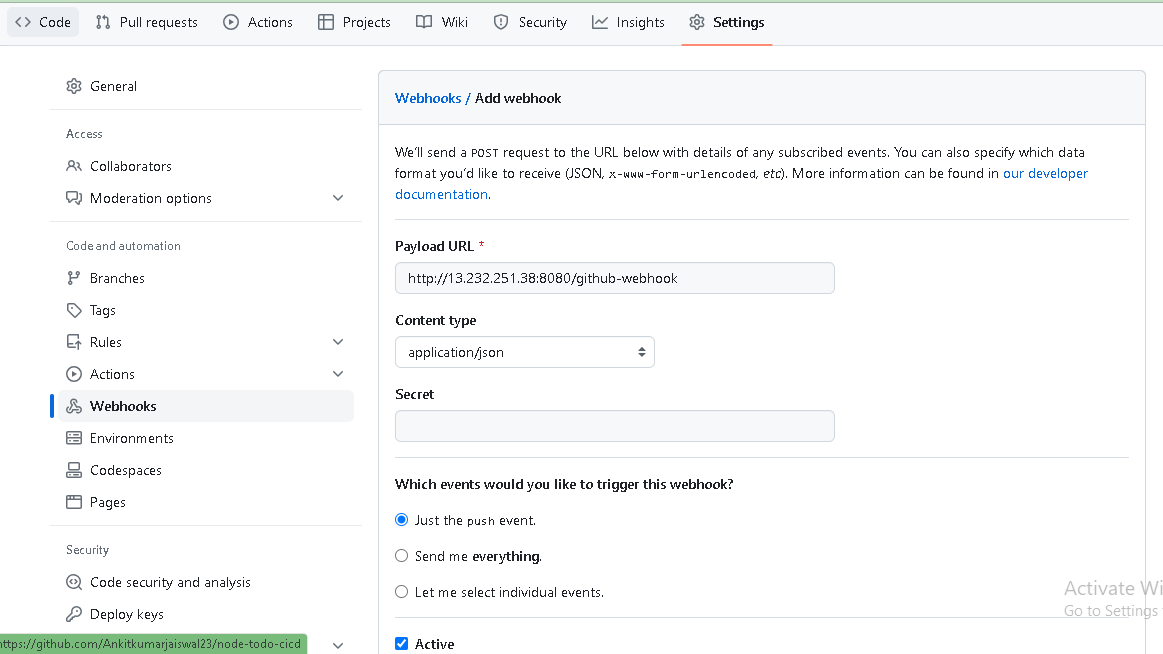

For GitHub-Webhook:

• Go to your GitHub repository and click on Settings.

• Click on Webhooks and then click on Add webhook.

• In the ‘Payload URL’ field, paste your Jenkins environment URL. At the end of this URL add /github-webhook/. In the ‘Content type’ select: ‘application/json’ and leave the ‘Secret’ field empty.

• Now for Installing GitHub Integration plugin in Jenkins

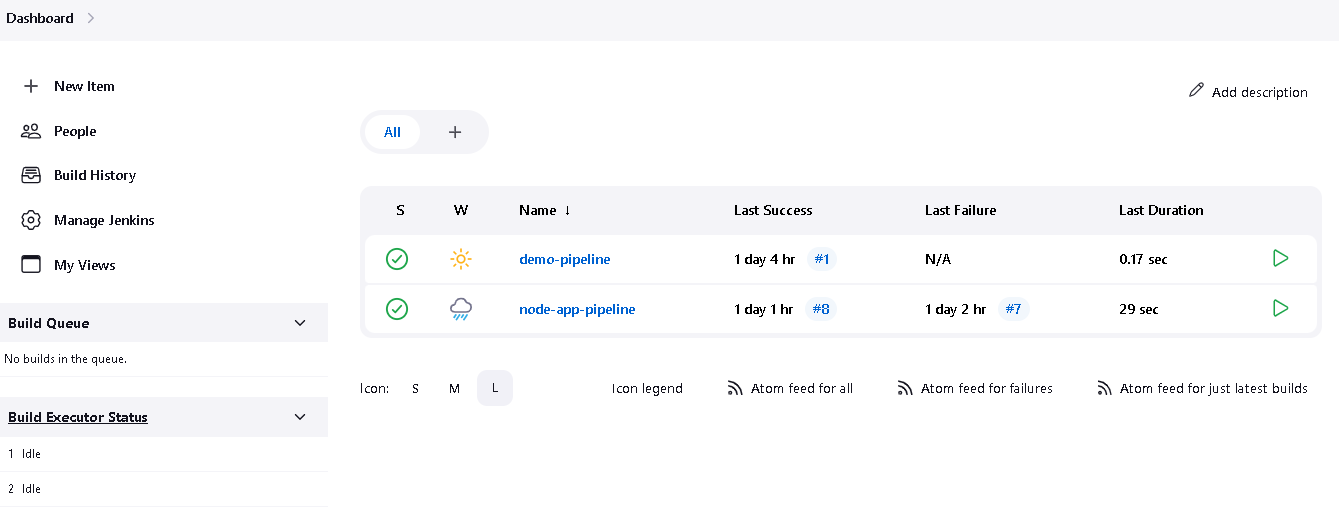

• Open your jenkins dashboard.

• Click on the Manage Jenkins button on your Jenkins dashboard

• Click on Manage Plugins

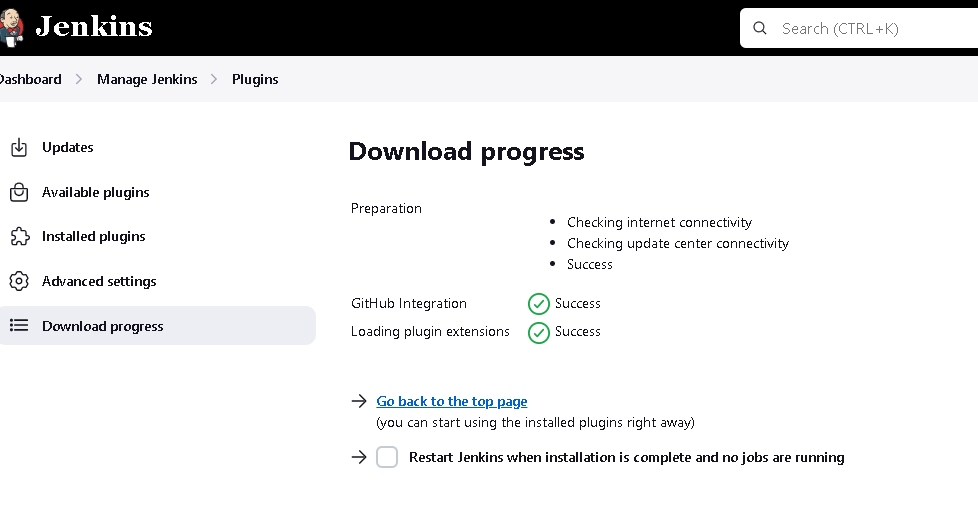

• Install GitHub Integration plugin.

• Configuring Jenkins:

• Create a jenkins job:

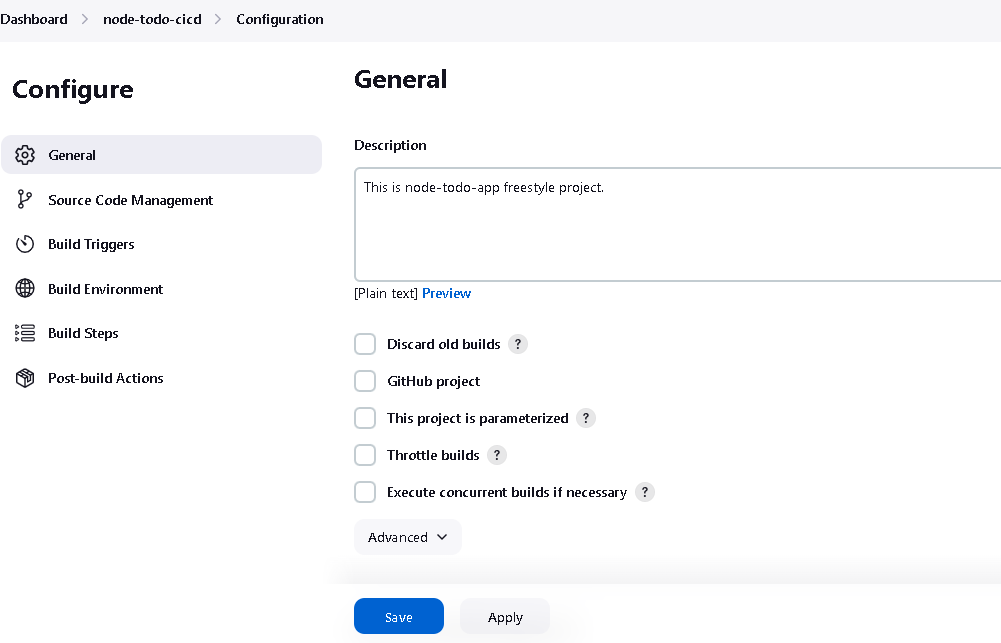

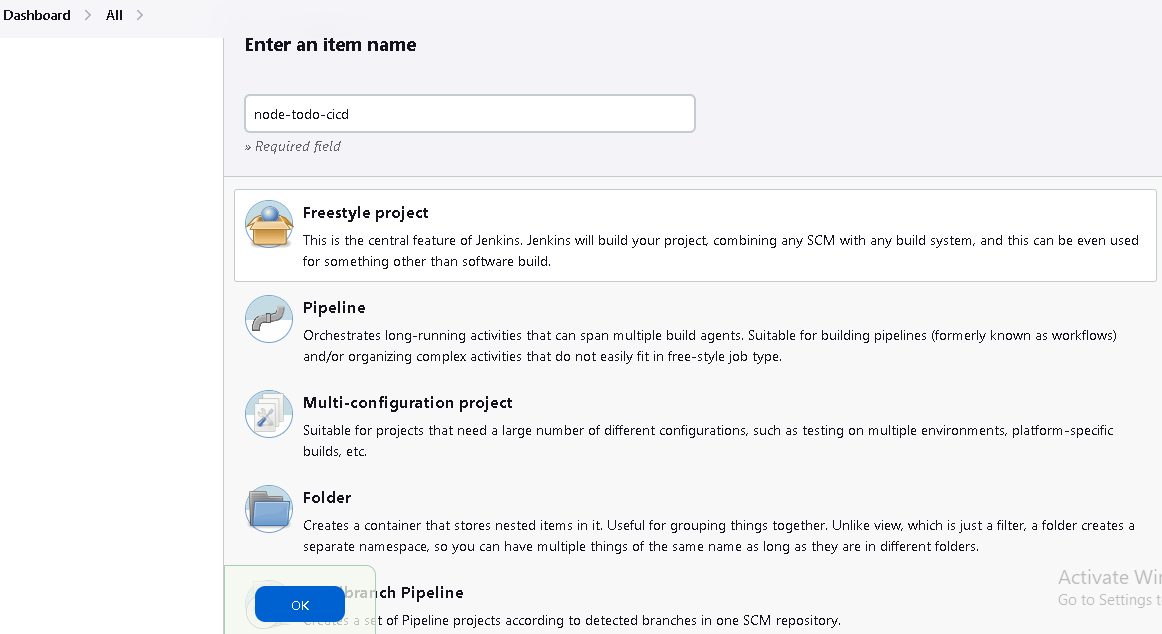

• Create node-todo-app freestyle project:

• In Configure, GitHub project URL write your project GitHub URL:

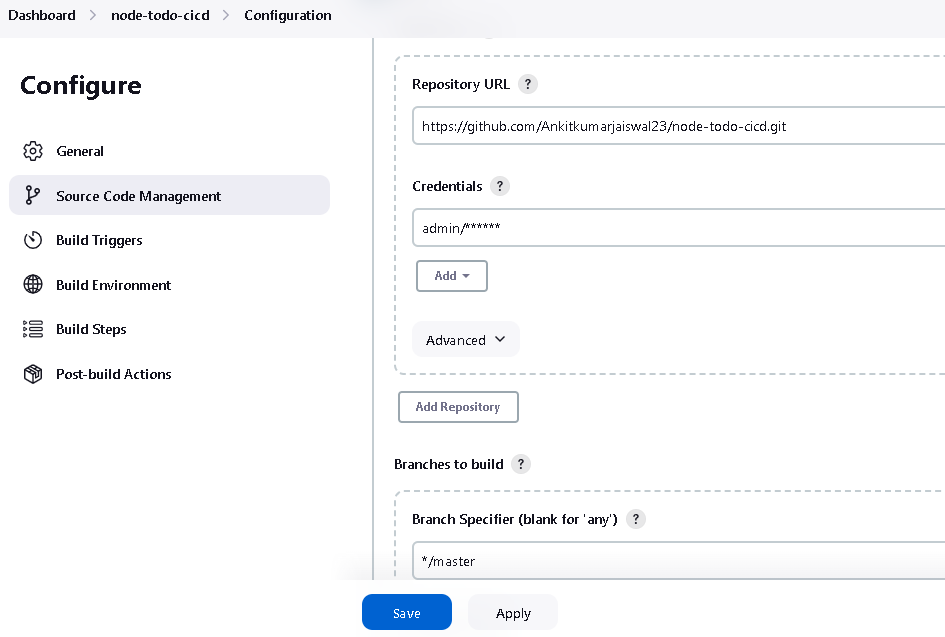

• In Git, add credentials for Jenkins:

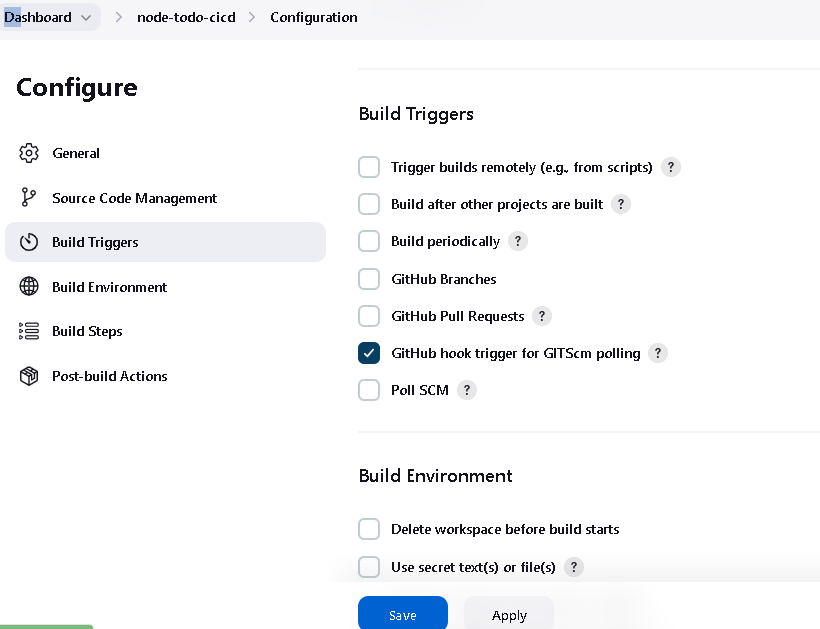

• Click on the ‘Build Triggers’ tab and then on the ‘GitHub hook trigger for GITScm polling’.

Task 2:

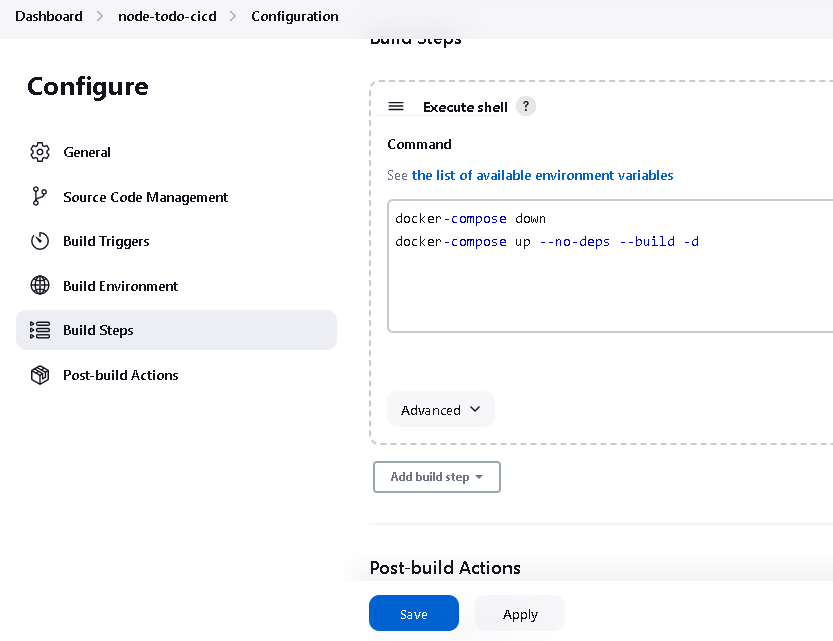

In the Execute shell run the application using Docker compose

• You will have to make a Docker Compose file for this Project

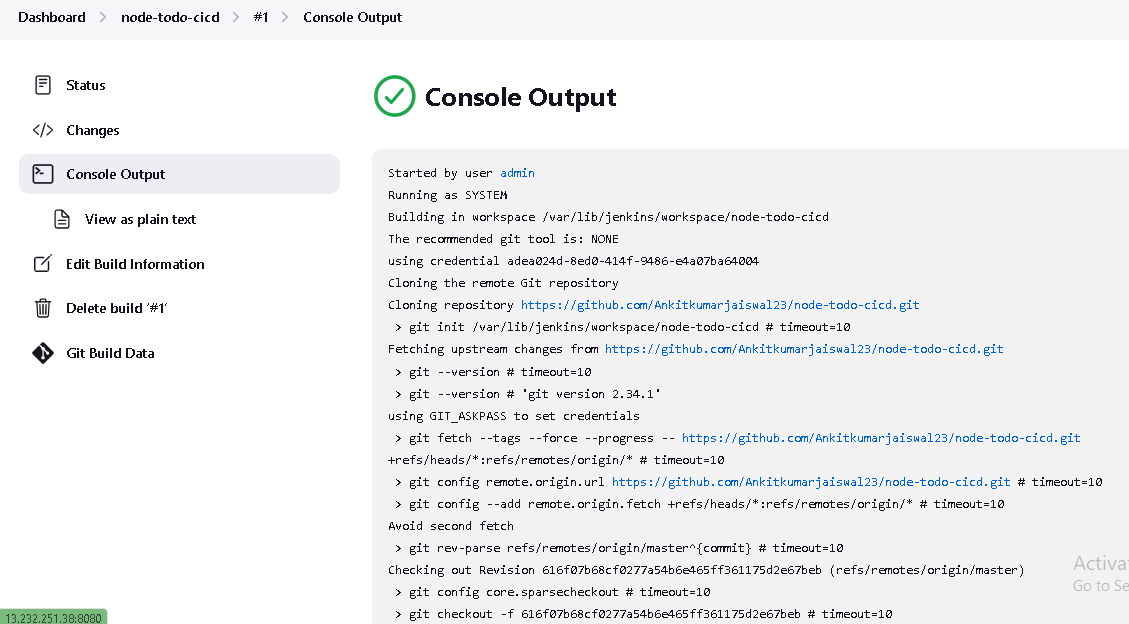

• After build you can check console output.

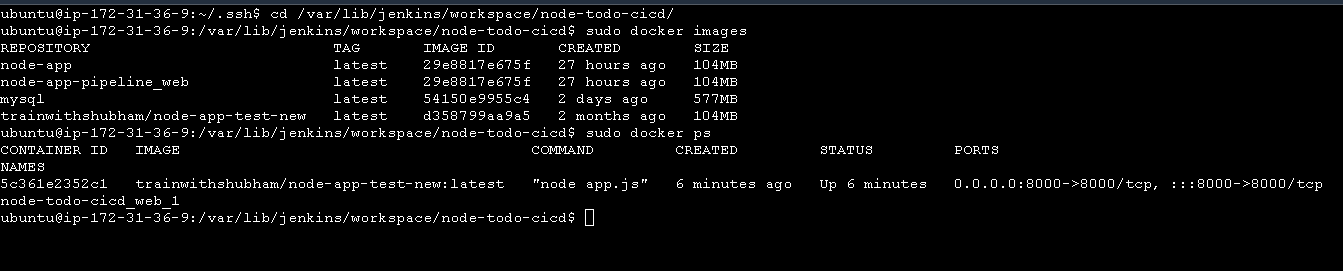

• Using docker ps command, you can see container is created.

• Browse public IP address with port no.8000

Thankyou for reading. Happy Learning.
